Hi Tech Radiators

Fabrication

Hi Tech can fabricate any style radiator tank to suit if not improve on O/E equipment for those hard to find tank replacements on all types of machinery both in plastic brass and steel tanks from motor bikes to trucks, earthmoving and generators. All work is done in house with exceptional turn around time. Separate items can be duplicated with out core supplied and pressure tested. This tends to be needed mostly on rusted out steel tanks or plastic tanks that crack due to heat deteriorating the material, we then will refabricate in either brass or alloy depending on the material of core.

Refabricated Oil Coolers, Heat exchanges, can save you thousands of dollars on new price and last longer then factory production, made from aluminium and brass, ask Hi - Tech how they can save you $$$$ on replacements.

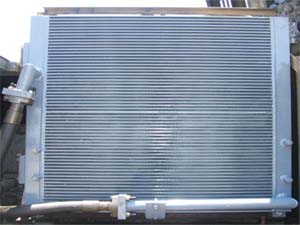

Sumitomo ssh300 ( 2000 ) 30 tonne excavator hydraulic oil cooler. The original oilcooler was a steel application that weighed 140.4kg and the one that we just built was a heavy duty plate and bar aluminium unit that weighed 65.4kg and is more efficent then the steel. For Sale

Chrysler Header Tank Fabrication top view
       Chrysler Header Tank Fabrication bottom view


Header tanks redone in Brass.


Kobota U45 Radiator rebuilt by Hi Tech Fabrication.
An aluminium top tank fabricated to replace parts no longer available.
Going to a alloy tank or a brass tank is stronger and easier to repair if needed on site, also being more cost effective in the long run.





Kobota U45 Radiator rebuilt by Hi Tech
Fabrication.



Ford Louisville L9000 Header Tank Fabrication
